CAB Webbing Belts, Straps and Hangers

[column grid=”2″ span=”1″]

CAB Webbing Hanger

z

CAB Webbing Hangers are made for the heavy-duty support of pipe and cable in underground mines and tunnels. Custom offset hooks are securely sewn into the ends of strong 1-1/2” (38mm) wide polypropylene webbing. Available with standard non-welded or heavy-duty welded hooks. Size measured from end of hooks with webbing fully extended. Common sizes listed below. Custom sizes available.

CAB 897 Webbing Hangers

CAB Webbing Hangers feature two heavy-duty hooks and strong, orange polypropolene webbing for durable cable support.  (Pictured CAB #897)

Standard 3/16” (5mm) Diameter Hooks:
CAB 897  15” (381mm) long, 100/box, 15 lbs. (6.8kg)
CAB 898  23” (584mm) long, 100/box, 16 lbs. (7.3kg)
CAB 900  30” (762mm) long, 50/box, 9 lbs. (4.1kg)
CAB 902   36” (914mm) long, 50/box, 10 lbs. (4.5kg)
CAB 6820 48” (1.2m) long, 50/box, 12 lbs. (5.5kg)

Heavy Duty Welded 3/16” (5mm) Diameter Hooks:
CAB 893 15” (381mm) long, 100/box, 15 lbs. (6.8kg)
CAB 894 23” (584mm) long, 100/box, 17 lbs. (7.7kg)
CAB 895 30” (762mm) long, 50/box, 9 lbs. (4.1kg)
CAB 896 36” (914mm) long, 50/box, 10 lbs. (4.5kg)
CAB 6819 48” (1.2m) long, 50/box, 13 lbs. (5.9kg)

Click to request more information or free samples.

Click for safe working loads, spacing & other data.

[/column]
[column grid=”2″ span=”1″]

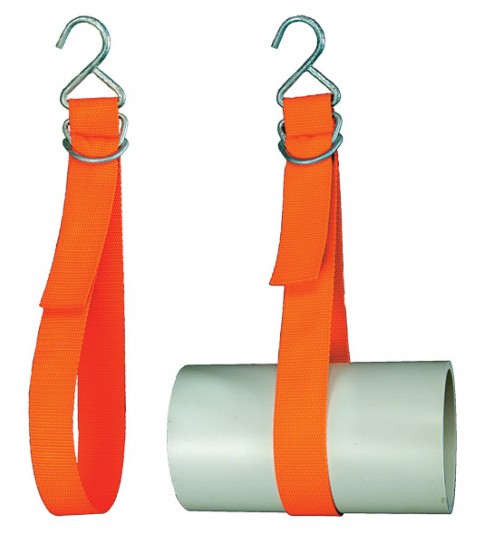

CAB Double D-Ring Hanger

CAB Double D-Ring Webbing Hangers are versatile solutions designed for supporting hose, pipe and cable in a variety of underground applications. Double D-rings allow for quick and easy adjustment of hanger length to keep lines at the desired height. Hanger made from 1-1/2” (38mm) wide orange polypropylene webbing. Top hook and D-rings welded and hot-dipped galvanized for extra strength and durability. Available in lengths of 2’ to 20’ (610mm to 6.1m) in 1′ (305mm) increments. Common sizes listed below. For heavier loads use 1/4” (6.4mm) top hook. Also available with extra heavy-duty 3/8″ (10mm) top hook. Size measured by overall length of webbing and hook before assembly.

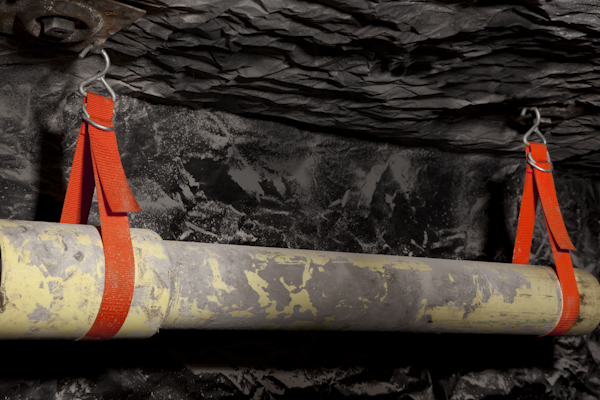

CAB 835 Webbing Hangers-Edit

CAB Double D-Ring Webbing Hangers allow for quick and easy adjustment of length to position lines at the desired height.  (Pictured CAB #835)

Standard 3/16” (5mm) Diameter Top Hook:
CAB 834   2 ft. (610mm) long, 50/box, 10 lbs. (4.5kg)
CAB 835   3 ft. (914mm) long, 50/box, 11 lbs. (5kg)
CAB 836   4 ft. (1.2m) long, 50/box, 12 lbs. (5.5kg)
CAB 837   5 ft. (1.5m) long, 50/box, 13 lbs. (5.9kg)
CAB 838   6 ft. (1.8m) long, 50/box, 14 lbs. (6.3kg)

Heavy Duty 1/4” (6.4mm) Diameter Top Hook:
CAB 844   2 ft. (610mm) long, 50/box, 13 lbs. (5.9kg)
CAB 845   3 ft. (914mm) long, 50/box, 14 lbs. (6.4kg)
CAB 846   4 ft. (1.2m) long, 50/box, 16 lbs. (7.3kg)
CAB 847   5 ft. (1.5m) long, 50/box, 18 lbs. (8.2kg)
CAB 848   6 ft. (1.8m) long, 50/box, 20 lbs. (9.1kg)

[/column]
[column grid=”2″ span=”2″]

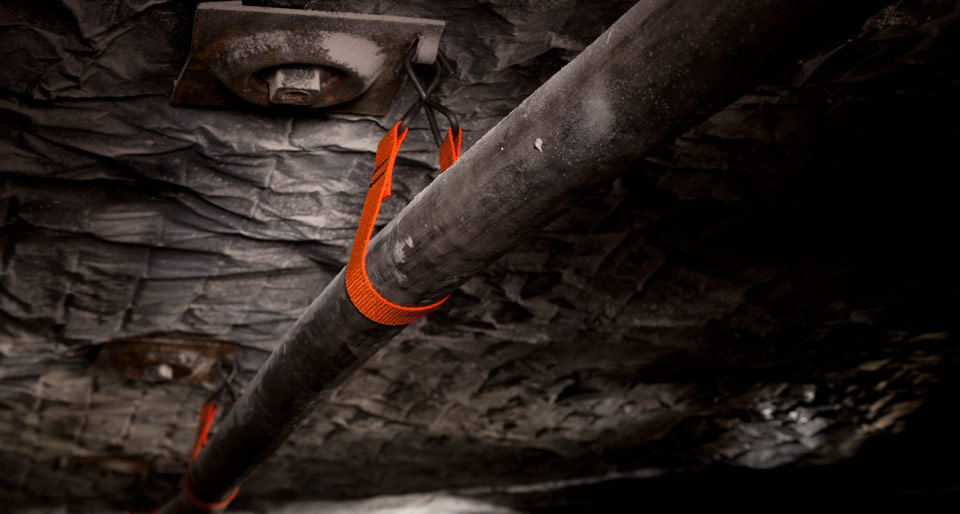

CAB Webbing Hanger Coal Mine Application

CAB Webbing Hangers provide heavy-duty control of cables for superior safety.  (Pictured CAB #897)

[/column]
[column grid=”2″ span=”1″]CAB-Webbing-Belts-and-Straps

[/column]
[column grid=”2″ span=”1″]

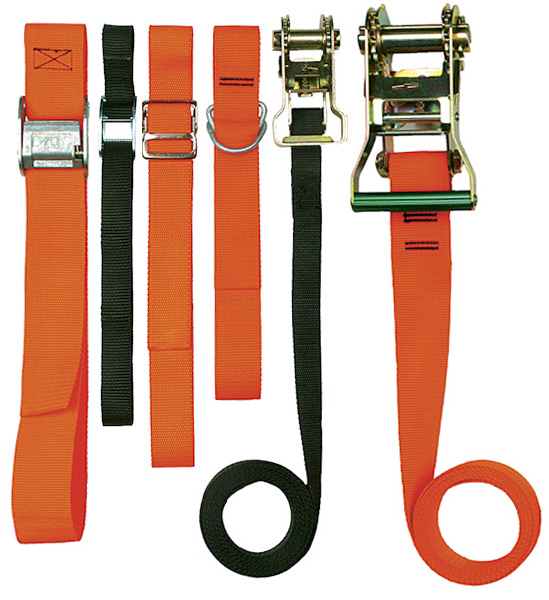

CAB Webbing Belts and Straps

Heavy Duty Styles for Bundling Hoses and Cables

Belts made from black or orange polypropylene webbing in three widths: 1″, 1-1/2″or 2″ (25mm, 38mm or 51mm). Choice of high quality corrosion resistant buckles in Double-D, Standard, Cam and Ratchet styles. Especially useful in longwall applications. Common sizes listed below. Custom sizes available.

Cam Buckle:
CAB 6127   1” x 2 ft. (25mm x 610mm) long, 50/box, 6 lbs. (2.7kg)
CAB 6995  1” x 3 ft. (25mm x 914mm) long, 50/box, 8 lbs. (3.6kg)
CAB 7299  1” x 4 ft. (25mm x 1.2m) long, 50/box, 9 lbs. (4.1kg)
CAB 3707  2” x 4 ft. (51mm x 1.2m) long, 25/box, 18 lbs. (8.2kg)

Standard Buckle:
CAB 3715  1-1/2” x 4 ft. (38mm x 1.2m) long, 50/box, 9 lbs. (4.1kg)

Double-D Ring Buckle:
CAB 852   1-1/2” x 2 ft. (38mm x 610mm) long, 50/box, 8 lbs. (3.6kg)
CAB 853   1-1/2” x 3 ft. (38mm x 914mm) long, 50/box, 9 lbs. (4.1kg)
CAB 854   1-1/2” x 4 ft. (38mm x 1.2m) long, 50/box, 10 lbs. (4.5kg)
CAB 855   1-1/2” x 5 ft. (38mm x 1.5m) long, 50/box, 11 lbs. (5kg)

Rachet Style:
CAB 3827   1” x 12 ft. (25mm x 3.7m) long, 25/box, 25 lbs. (11.4kg)
CAB 6960  2” x 6 ft. (51mm x 1.8m) long, 10/box, 25 lbs. (11.4kg)
CAB 6472   2” x 12 ft. (51mm x 3.7m) long, 10/box, 28 lbs. (12.7kg)
[/column]
