CAB Bosserman Clips

CAB-Bosserman-Clip

The Bosserman Clip is CAB’s strongest, most corrosion resistant mine hanger.

CAB Bosserman Clips are widely respected for their superior ability to safely suspend electrical cables and wiring in a variety of underground applications. CAB Bosserman Clips feature a 100% plastisol coated high tensile spring steel body and locking arm to prevent pull out and slippage. This improved hanger combines all the advantages of steel and plastic for the highest level of performance and safety underground.

CAB Bosserman Clips install quickly and easily, and have a safe working load over 250lbs (110kg).



Advantages of Bosserman Clips

1. Corrosion and rust problems are virtually eliminated due to the heavy plastisol coating over the entire metal surface of the Bosserman Clip. This rustproofing protection will outlast other typical methods of rustproofing and will result in significant cost savings and improved safety.

2. Slippage of hangers on the messenger wire is no longer a problem due to the slip resistance of the plastisol in the attachment section of the clip. Uniform spacing of hangers without this slippage will keep wires more safely up and out of the way.

3. High dielectric grade plastisol applied on 100% of the hanger surface makes the Bosserman Clip totally insulated and spark resistant. Provides for maximum safety in the suspension of electric cables and wiring in all underground applications.

4. Extra Long Styles available for running 2 cables separately from 1 messenger wire or large bundles of cables. Also available with 1” (25mm)wide saddles in the cable carrying section for extra support of cables.

CAB Bosserman Clip Application

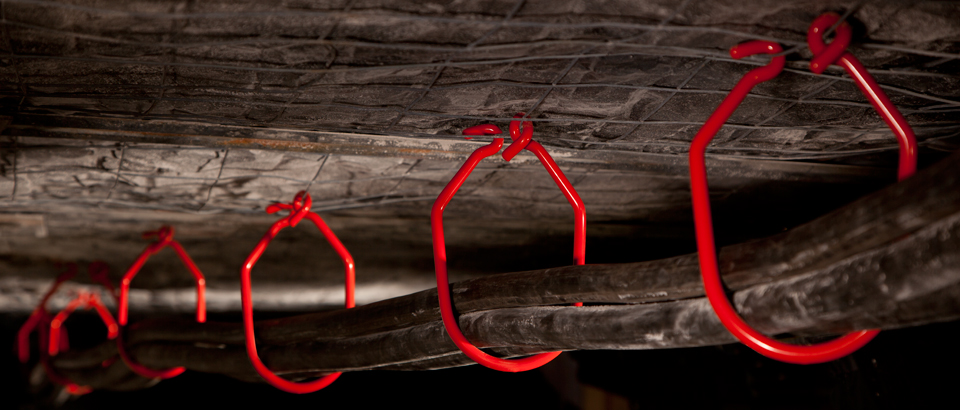

CAB Bosserman Clips are an industry favorite for durable support in highly corrosive environments.  (Pictured CAB #824)

Bosserman 1/4″ (6mm) Lock
CAB 814
1″ (25mm) dia.,200/box, 13 lbs. (5.9kg)
CAB 815 2″ (51mm) dia.,100/box, 13 lbs. (5.9kg)
CAB 816 3″ (76mm) dia.,50/box, 9 lbs. (4.1kg)
CAB 817 4″ (102mm) dia.,50/box, 16 lbs. (7.3kg)
CAB 818 5″ (127mm) dia.,25/box, 9 lbs. (4.1kg)
CAB 819 6″ (152mm) dia.,25/box, 10 lbs. (4.5kg)
CAB 820 8″ (203mm) dia.,25/box, 13 lbs. (5.9kg)

Bosserman 3/8″ (10mm) Lock
CAB 821
1″ (25mm) dia.,200/box, 13 lbs. (5.9kg)
CAB 822 2″ (51mm) dia.,100/box, 13 lbs. (5.9kg)
CAB 823 3″ (76mm) dia.,50/box,   9 lbs. (4.1kg)
CAB 824 4″ (102mm) dia.,50/box, 16 lbs. (7.3kg)
CAB 825 5″ (127mm) dia.,25/box, 9 lbs. (4.1kg)
CAB 826 6″ (152mm) dia.,25/box, 10 lbs. (4.5kg)
CAB 828 8″ (203mm) dia.,25/box, 13 lbs. (5.9kg)

Bosserman 1/2″ (13mm) Lock
CAB 950
1″ (25mm) dia.,200/box, 13 lbs. (5.9kg)
CAB 951 2″ (51mm) dia.,100/box, 13 lbs. (5.9kg)
CAB 952 3″ (76mm) dia.,50/box, 9 lbs. (4.1kg)
CAB 953 4″ (102mm) dia.,50/box, 16 lbs. (7.3kg)
CAB 954 5″ (127mm) dia.,25/box,    9 lbs. (4.1kg)
CAB 955 6″ (152mm) dia.,25/box, 10 lbs. (4.5kg)
CAB 956 8″ (203mm) dia.,25/box,  13 lbs. (5.9kg)

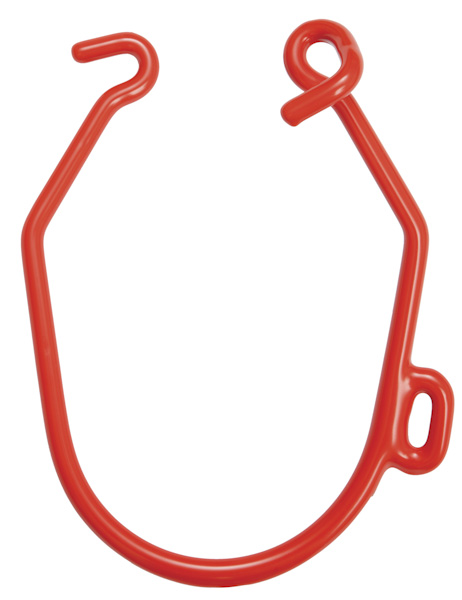

CAB Bosserman Clip with Side Eye
CAB Bosserman Clip with Side Eye

CAB Bosserman Clip with Side Eye

This versatile Bosserman Clip has a welded side eye for hanging CAB single or multiple carrier telewire hooks. Available in 4″ (102mm), 5″ (127 mm), 6″ (152mm) and 8″ (203mm) diameter sizes. Fits 1/4″ (6mm), 3/8″ (10mm), and 1/2″ (13mm) messenger wire. Contact CAB for part numbers and additional information. Some minimums apply.

The CAB 4-Carrier Telewire Hook features four 1-1/4″ (32mm) carriers with 5/8″ (16mm) openings between carrriers and 1/2″ (13mm) top loop. Totally coated for added durability.

CAB 8128 4-Carrier Telewire Hook  14″ (356mm) long, 50/box, 15 lbs. (6.8kg)

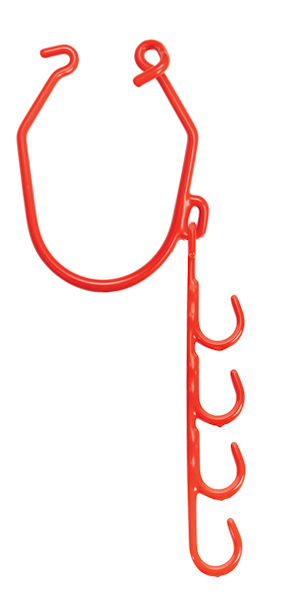

Bosserman Clip with Side Eye 4-Carrier Hanger

Shown with CAB #8128
4-Carrier Telewire Hook
