CAB® Telewire Hooks

CAB Hooks for Mining & Tunneling

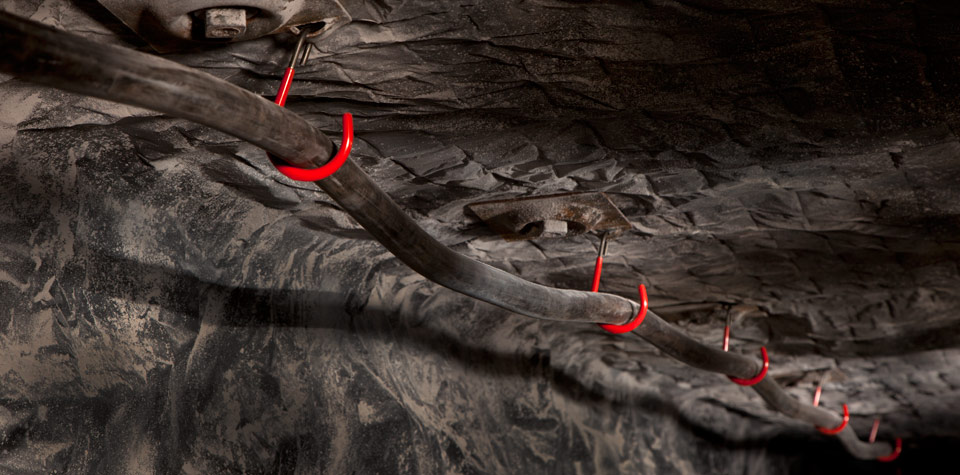

CAB Telewire Hooks are quick and easy to install for the safe control of smaller cables.  (Pictured CAB #219)

CAB Telewire Hooks provide safe support for electrical, control, communication or sensor wires. Can be driven into timber or hung from roof bolt plates, chain, spads or cable. Pigtail and closed loop designs offer additional safety and prevent wires from accidentally coming out of the hanger.

Pigtail Telewire Hooks

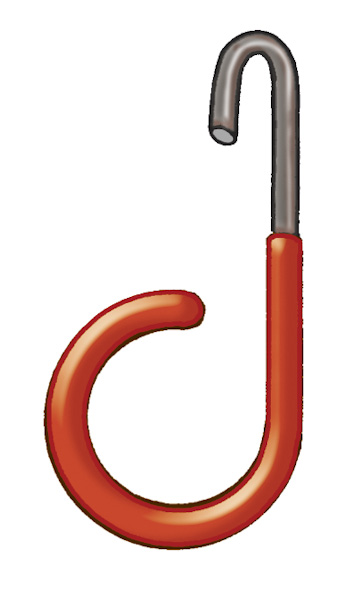

CAB-297-Telewire-Hook

Designed for installation from spad, roof bolt plate or chain. Offset opening helps retain wire in hook. Made from .187 (4.7mm) wire with 3/8” (10mm) diameter top loop offset 90º to 1-1/4″ (32mm) bottom carrier.

CAB 297   1-1/4” (32mm) dia., 200/box, 15 lbs. (6.8kg)

Open Telewire Hooks

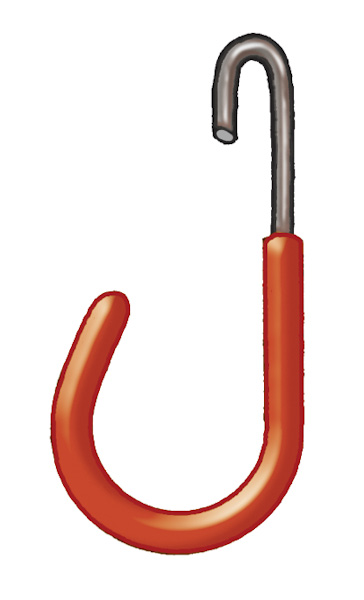

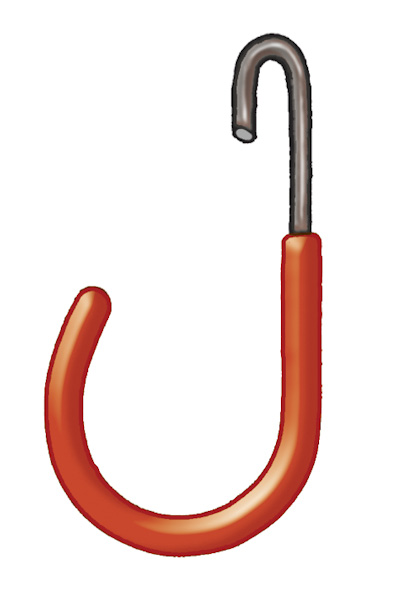

CAB 302 311 Telewire Hook

These J-Hooks are useful for a wide variety of hanging jobs. Can be installed from chain, roof bolt plates, spads, etc. 3/8” (10mm) diameter top loop offset 90º to 1-1/4” (32mm) carrier section. Offered in 2 wire gauges. Packaged 200/box.

CAB 302   1-1/4” (32mm) dia., .187 (4.7mm) wire, 16 lbs. (7.3kg)
CAB 311     1-1/4” (32mm) dia., .156 (4mm) wire, 11 lbs. (5kg)

Jumbo Telewire Hooks

CAB 302 311 Telewire Hooks jumbo

Extra capacity hooks made for those large jobs. Features same design as the popular 297 and 311 but have larger overall dimensions. Made from sturdy .187 (4.7mm) wire with a 5/8” (16mm) diameter top loop set at 90º to bottom carrier. Packaged 200/box. Available in 2 sizes.

CAB 223  1-5/8” (41mm) dia., 17 lbs. (7.7kg)
CAB 219  2” (51mm) dia., 19 lbs. (8.6kg)

S-Style Pigtail Telewire Hooks

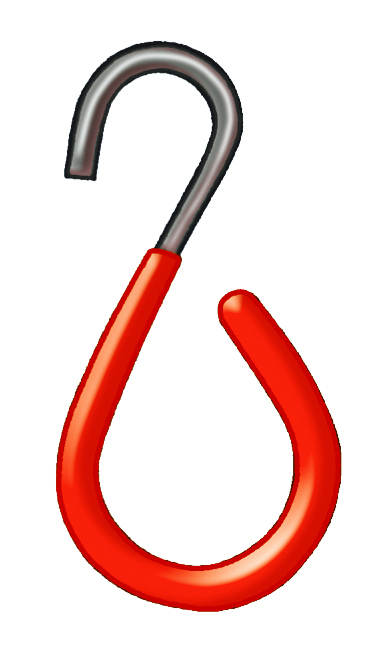

CAB 333 Telewire Hook

Feature a large 5/8” (16mm) diameter top attachment loop for easier installation. Offset opening retains wiring in support area. Available in 2 wire gauges. Packaged 200/box.

CAB 333  1-1/4” (32mm) dia., .156 (4mm) wire, 12 lbs. (5.5kg)
CAB 339  1-1/4” (32mm) dia., .187 (4.7mm) wire, 16 lbs. (7.3kg)

S-Style Telewire Hooks

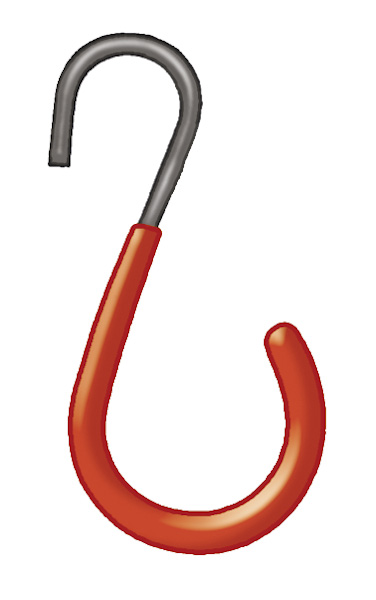

CAB 340 341 Telewire HookS-Style hook features 5/8” (16mm) diameter top loop and 1-1/4” (32mm) diameter carrier loop. CAB 340 same as 341 except attachment loop set 90º to carrying area. Made from .156 (4mm) wire.

CAB 340  1-1/4” (32mm) dia., 200/box, 11 bs. (5kg)
CAB 341   1-1/4” (32mm) dia., 200/box, 11 lbs. (5kg)

Closed Loop Telewire Hooks

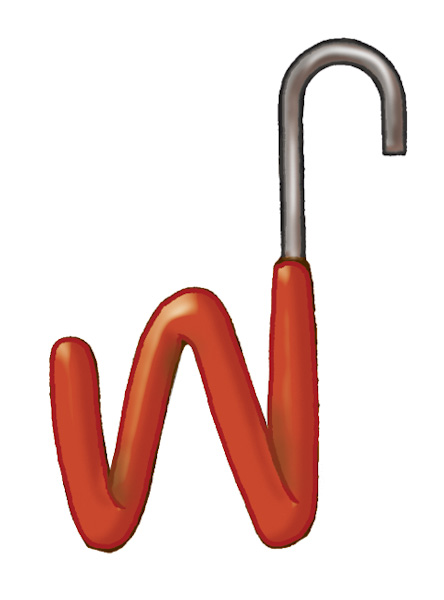

CAB Closed Loop Telewire HooksClosed loop design prevents wires from vibrating or jumping out of the carrier section of the hook. Made from .156 (4mm) wire with 1/2” (13mm) diameter top loop offset 90º to carrier section.

CAB 908  1” (25mm) dia., 200/box, 15 lbs. (6.8kg)
CAB 912   1-1/4” (32mm) dia., 100/box, 10 lbs. (4.5kg)

Drive-In Telewire Hooks

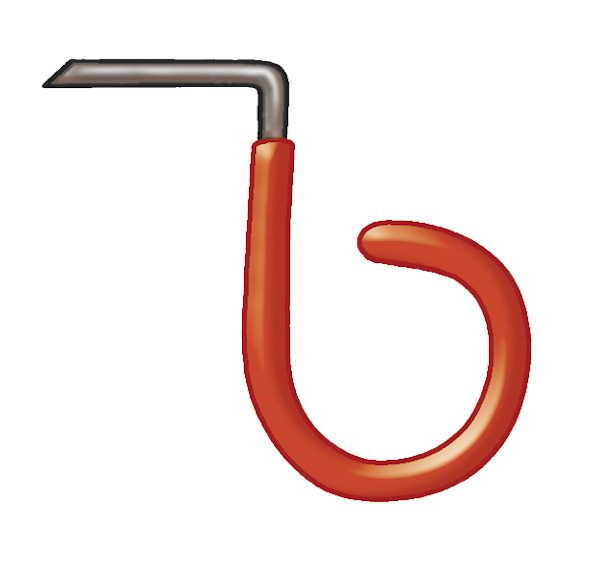

CAB Drive-In Telewire Hook

Designed to be installed without a nail. Hooks have a sharp point for driving and an offset opening to prevent wires from accidently coming out of the hook. Packaged 200/box.

CAB 342 3/4” (19mm) dia., .156 (4mm) wire, 10 lbs. (4.5kg)
CAB 296 1-1/4” (32mm) dia., .187 (4.7mm) wire, 15 lbs. (6.8kg)
CAB 334 1-1/4” (32mm) dia., .156 (4mm) wire, 12 lbs. (5.5kg)

Closed Loop Drive-In Telewire Hooks

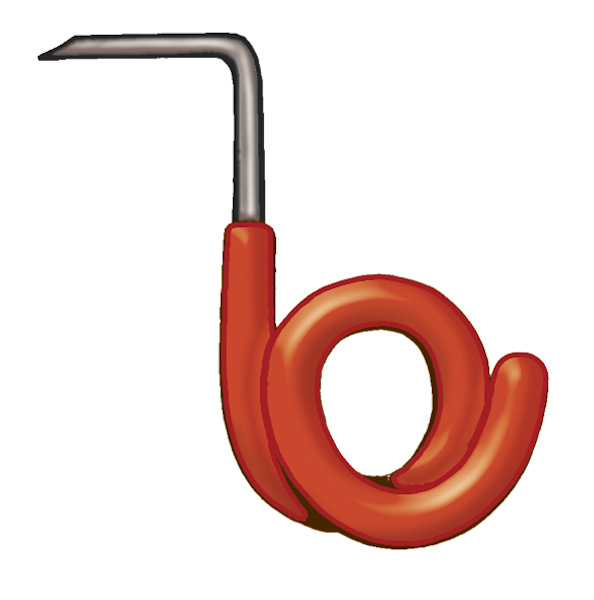

CAB Drive-In Closed Looop Hook

Feature a 540º insulated spiral loop which virtually guarantees that wiring will be safely retained and not accidentally vibrate or jump out of the hook. Easily installed with sharp tip drive-in point. Made from .156 (4mm) wire.

CAB 911  1-1/4” (32mm) dia., 100/box, 11 lbs. (5kg)

____________________________________________________________________________________________________________________________

CAB® Multi-Carrier Hooks

CAB Multi Carrier Telewire Hook Coal Mine Application

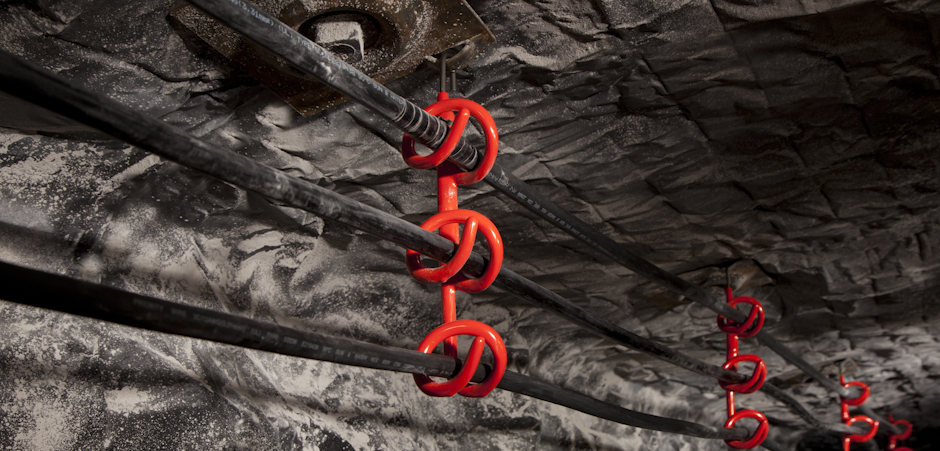

CAB Multi-Carriers deliver high performance for organizing control, sensor, communications and other wiring.  (Pictured CAB #812)

CAB Multi-Carrier Telewire Hooks provide a safe system for organizing sensor, communication, control and electrical wiring.  Especially useful along conveyor beltlines and when running multiple cables.

4-Carrier Closed Loop Hooks

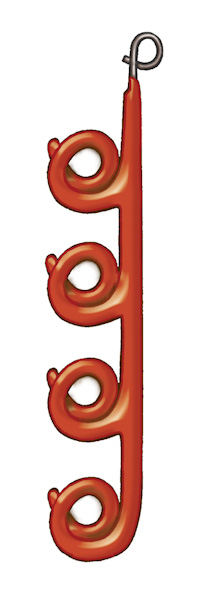

CAB 305 Multi-Carrier

CAB 305 has four 1” (25mm) diameter closed spiral loops. 1/2” (13mm) diameter top loop has closed spiral design which prevents dislodging of hanger from beltline chain or other support after installation. .156 wire (4mm), 11-3/4” (298mm) long.

CAB 305   25/box, 11 lbs. (5.0kg)
CAB 231*   25/box, 11 lbs. (5.0kg)

*Same as CAB 305 except with drive-in point for nail-in application.

3-Carrier Closed Loop Hooks

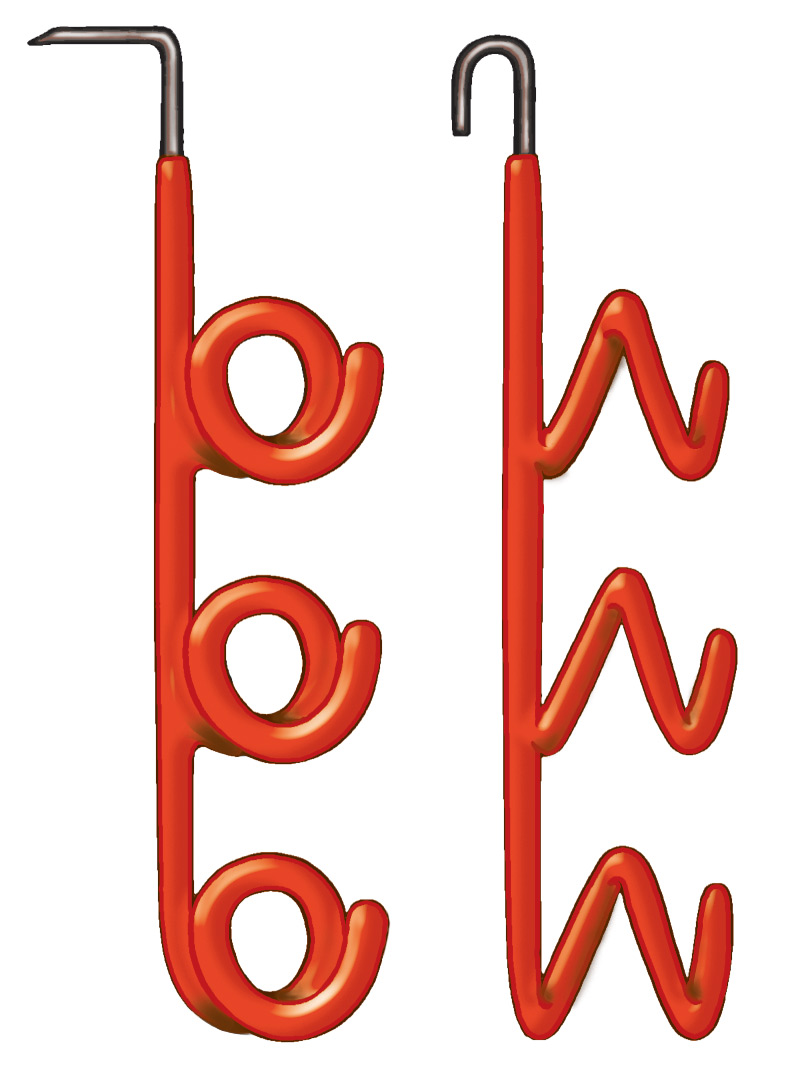

CAB 811 812 Multi-Carrier Telewire Hooks



CAB 811 and 812 feature three 1-1/4” (32mm) diameter closed loop carriers. CAB 812 has 1/2” (13mm) diameter top loop for installation from plates, spads or chain. The 811 has sharp tip drive-in point for easy nailing into wood structure. Made from .156 (4mm) wire, 10-5/8” (270mm) long. Packaged 25/box.

CAB 811  10 lbs. (4.5kg)
CAB 812  10 lbs. (4.5kg.)

3-Carrier Open Loop Hooks

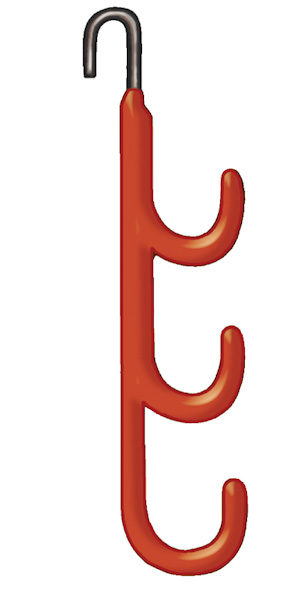

CAB 4701 Multi-Carrier Hook

CAB 4701 has three 3/4″ (19mm) diameter carriers and 1/2″ (13mm) diameter open top loop. CAB 809 is the same except has a drive-in point. 8” (203mm) long. Made from .156 (4mm) wire.

CAB 4701   50/box, 10 lbs. (4.5kg)
CAB 809   100/box, 15 lbs. (6.8kg)

2 and 4-Carrier Closed Loop Hooks

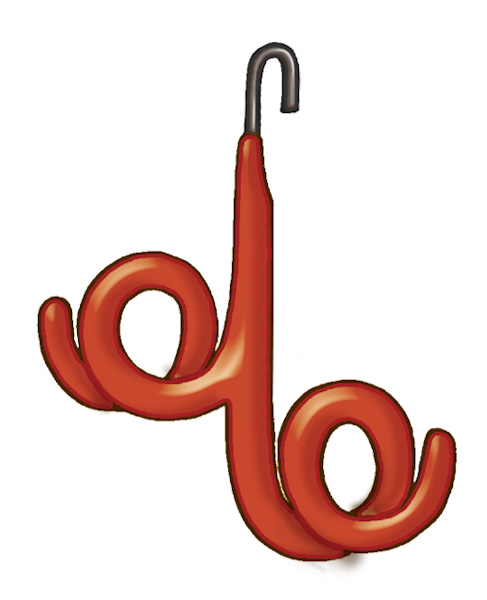

CAB 910 Multi-Carrier Hookwidth=”487″ height=”600″

CAB 910 features two 1” (25mm) diameter closed loop carriers. Ideal for above beltlines because of short 5-1/4” (133mm) length. .156 (4mm) wire with 1/2” (13mm) diameter top loop.

CAB 910  50/box, 9 lbs. (4.1kg)

CAB 813 Same design as 910 but features four 1-1/4” (32mm) diameter closed loop spirals which securely retain cables in hanger. Overall length 11” (279mm).

CAB 813  40/box, 19 lbs. (8.6kg)

Telewire Bars

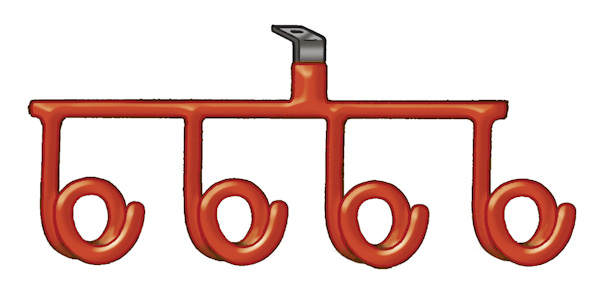

CAB Telewire Bars

CAB Telewire Bars are heavy duty multi-carrier hangers for roof installations. Top section made from .180″ x 1″ (4.6 x 25.4mm) safety edge steel and 5/16” (7.9mm) round stock. Bottom carriers made any diameter in closed loop (pictured) or open loop designs. Can be made with 1 to 10 carriers, custom to your specifications.
