CAB Cable Rings and Saddles offer significant cost savings compared to buried cables or cable tray. Initial material costs are much lower, plus labor costs are reduced during installation. In future years, CAB Cable Rings and Saddles offer easy access for additional wiring, troubleshooting or maintenance tasks.
CAB Cable Rings and Saddles deliver safe, strong and durable support for all types of electrical, control and communication cables. They perform as a high quality mini-cable tray system for a fraction of the cost of cable tray.They offer exceptional reliability and last much longer than cable ties or lashing wire, especially in demanding and corrosive environments.

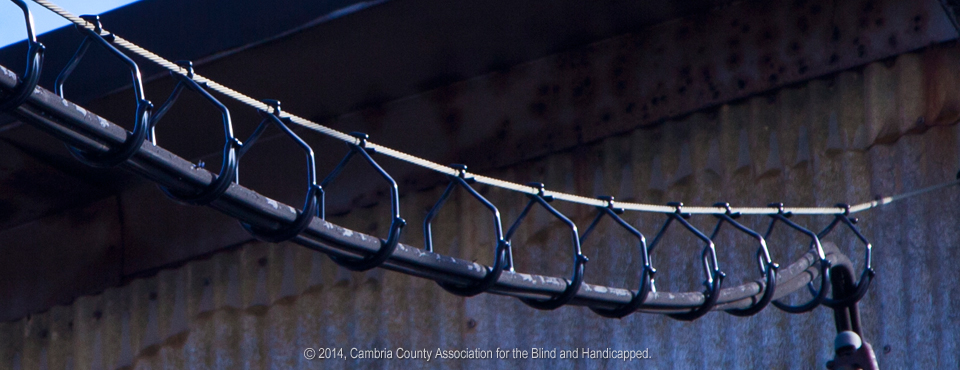

CAB Cable Rings install quickly and easilyfor large labor savings on the job site. They install in seconds and the innovative design provides a strong, tight grip of the CAB Ring to the messenger wire. This allows cables to be pulled long distances quickly and easily. The wide load bearing area of CAB Saddles provides extra cable support and protection. CAB Cable Rings and Saddles have plenty of capacity for large cables or large bundles of cables.
CAB Cable Rings and Saddles are quick and easy to install. Cables are easily pulled long distances; plus it is simple to add additional cables in the future. Click above for video.

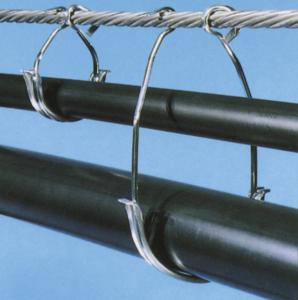

CAB Cable Rings are manufactured in standard, medium and long styles, and are designed to tightly fit on an exact messenger wire size to prevent slippage. Pictured here are CAB standard and long style galvanized Cable Rings and Saddles. Long Style Cable Rings have extra length under strand for running several cables or bundles of cables independently from the same messenger wire.
CAB Spacing Guide
Rings 1-1/2″ through 2-1/2″ (38mm – 64mm) space apart 15″ to 20″ (381mm – 508mm).
Rings 3″ through 6″ (76mm – 152mm) space apart 12″ to 15″ (305mm – 381mm).
Exact spacing depends on type of cable, nature of installation and loading requirements.
- CAB Saddles offer a 1-inch (25mm) wide load-bearing area for extra support and protection of cables. This is especially important when running heavy cables or multiple cables.
- CAB Saddles install quickly and easily on any size Cable Ring.They are strong, lightweight and extremely durable.
- CAB Saddles feature an integral locking system for secure attachment of the Saddle to the Cable Ring.
