CAB® Heavy Duty Hangers

CAB 3-Carrier Hangers

3-Carrier Super Duty Hanger



CAB228-3Carrier

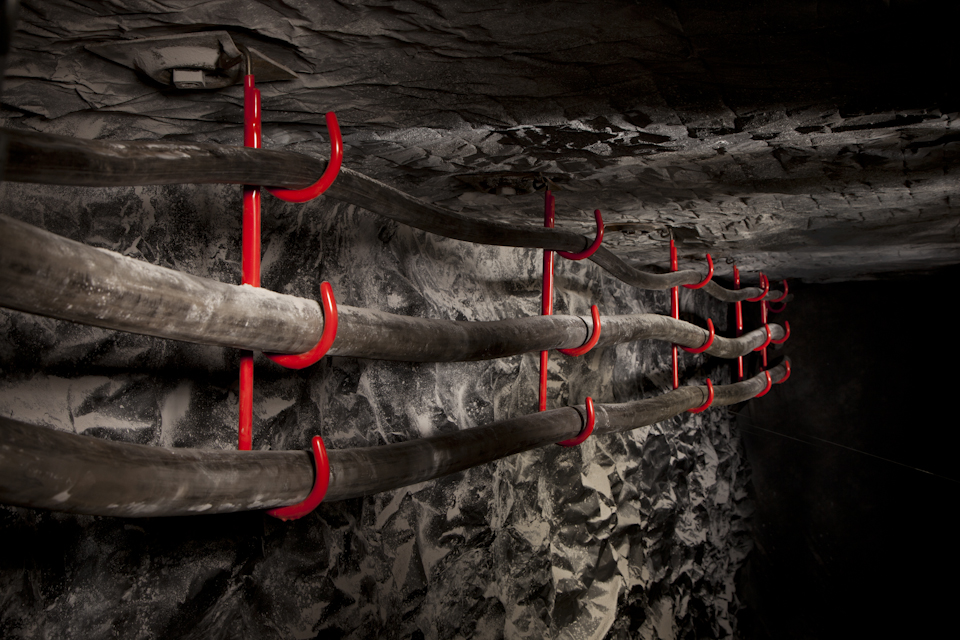

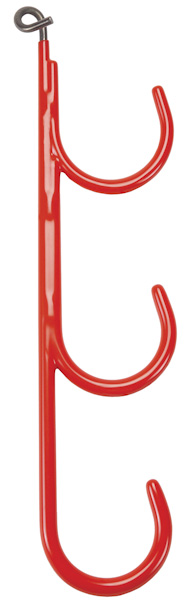

CAB 3-Carrier Hangers deliver safe, strong support for heavier loads.  (Pictured CAB #228  3-Carrier Hanger)

CAB’s versatile 3-carrier hanger with 3″ (76mm) diameter carriers is made from strong 1/4″ (6.4mm) diameter round wire. Featuring top spiral loop for secure attachment to plates, mesh or structure. Packaged 50/box.

CAB 228   1/2″ (13mm) dia. top loop,18” (457mm) long, 47 lbs. (21.4kg)
CAB 188    1-1/2″ (38mm) dia. top loop,18” (457mm) long, 47 lbs. (21.4kg)

_______________________________________________________________________________________________

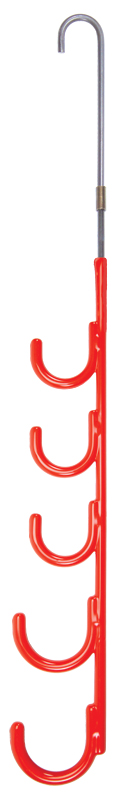

CAB Super Duty Hangers

CAB Super Duty Hangers

Designed to carry larger loads. Made from strong 1/2″ (13mm) diameter round stock to carry heavier loads. CAB 5653 is a 5-carrier hanger designed to handle heavy pipes, hoses and cables. Features three 3” (76mm) diameter and two 4” (102mm) diameter carriers with 2” (51mm) diameter top loop. Custom styles available.

CAB 5653   57” (1.4m) long

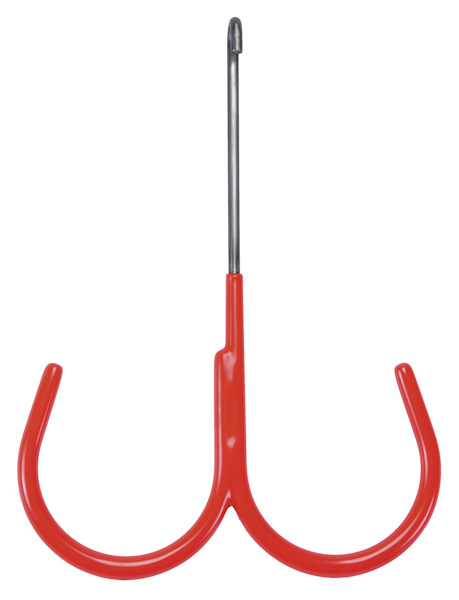

CAB Bullhorn Hangers



CAB Bullhorn Hanger

Heavy duty hangers made from strong 3/8″ (10mm) diameter round stock with a 1/2″ (13mm) diameter top loop. Bottom carriers are 5″ (127mm) diameter, heavily coated with high dielectric grade plastisol for added safety and protection. Custom sizes available for high roof areas.

2-Carrier, top loop offset 90º to carrier:
CAB 143 18″ (457mm) long, 10/box, 20 lbs. (9.1kg)
CAB 144 24″ (610mm) long, 10/box, 21 lbs. (9.5kg)
CAB 141 30″ (762mm) long, 10/box, 23 lbs. (10.5kg)

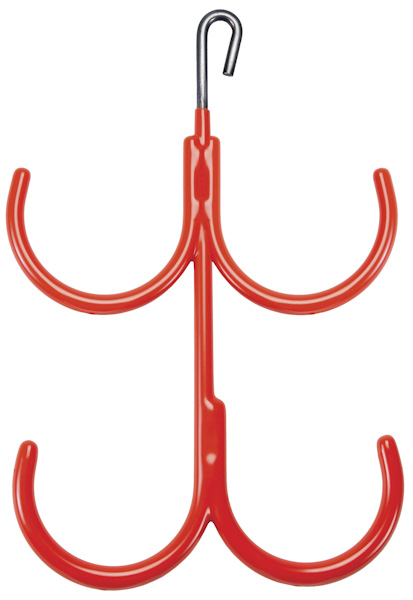

CAB 4-Carrier Bullhorn Hangers

CAB 4-Carrier Bullhorn Hanger



3-Carrier:
CAB 7628 19″ (483mm) long, 15/box, 34lbs. (15.5kg)

4-Carrier:
CAB 7683 19″ (483mm) long, 15/box, 41lbs. (18.6kg)

Also available with swivel top hook for faster installation.

HeavyDutyHooksCabman

CAB® Jumbo S-Hooks

CAB S-Hooks in various standard and custom sizes

Designed for all types of heavy duty hanging applications for pipe and cables. Manufactured from strong 1/2″ (13mm) diameter round stock with thick high dielectric grade plastisol coating for insulation and corrosion resistance. Large capacity 4-1/2″ (114mm) diameter bottom carrier and 2-1/4″ (57mm) top loop.

CAB 7338 10-1/2” (267mm) long, 10/box, 17 lbs. (7.7kg)
