CAB Cable Rings & Saddles for Pipelines and Shipbuilding

PVC Coated Cable RingandSaddle
CAB Cable Rings and Saddles offer significant cost savings compared to buried cable or cable tray.
Initial material costs are much lower, plus labor costs are reduced during installation. In future years, CAB Cable Rings and Saddles offer easy access for additional wiring, troubleshooting or maintenance tasks.

CAB Cable Rings and Saddles deliver safe, strong and durable support for all types of electrical, control and communication cables. They perform as a high quality mini-cable tray system for a fraction of the cost of cable tray. They offer exceptional reliability and last much longer than cable ties or lashing wire, especially in demanding and corrosive environments.

CAB Cable Rings install quickly and easily for large labor savings on the job site. They install in seconds and the innovative design provides a strong, tight grip of the CAB Ring to the messenger wire. This allows cables to be pulled long distances quickly and easily. The wide load bearing area of CAB Saddles provides extra cable support and protection. CAB Cable Rings and Saddles have plenty of capacity for large cables or large bundles of cables.

CAB Cable Rings and Saddles are quick and easy to install. Cables are easily pulled long distances; additional cables are easily added at later dates. Click above for video.

For maximum corrosion resistance, CAB Cable Rings and Saddles are manufactured from class 3 galvanized steel or type 316 stainless steel in rolled flat wire form. This high quality material provides a smooth, flat surface for the support of cables and rounded edges for the protection of cable jackets. The advanced roll-form design, combined with the strong spring temper of the wire, provides a tight, secure attachment of the cable ring to the messenger wire.

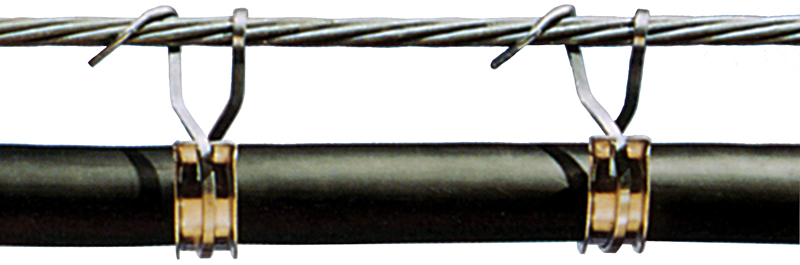

Photo of CAB Cable Rings and Saddles, steel with brass saddles, uncoated

CAB PVC Coated Cable Rings and Saddles offer maximum safety and protection for cables. CAB’s PVC Plastisol coating is high dielectric grade, flame retardant, UV stabilized and very abrasion resistant. CAB’s heavy 80 mil (2mm) thick PVC coating has a dielectric breakdown strength of 400 volts per mil (.025mm). CAB’s high performance coating is applied to 100% of the surface, which makes cable rings totally insulated, sparkproof, and extremely durable in corrosive environments.

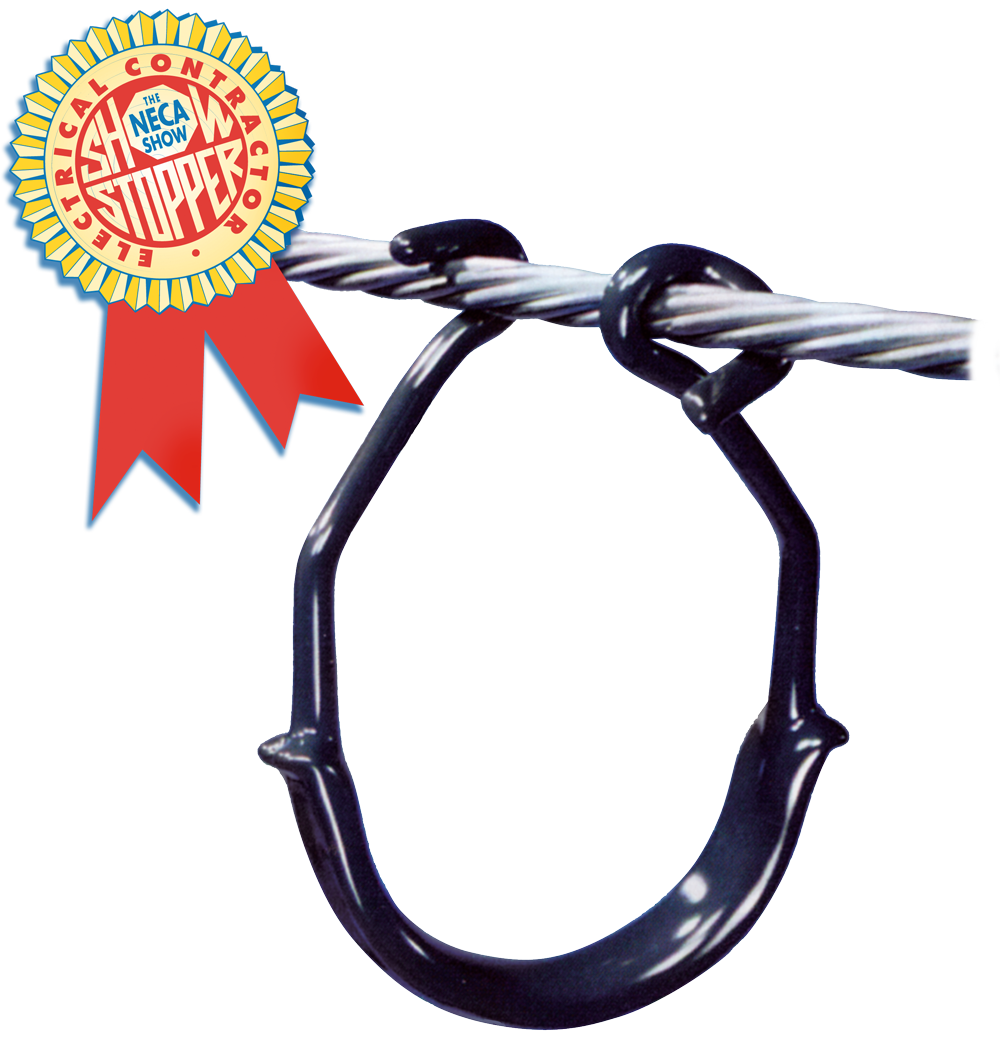

CAB Cable Ring and Saddles coated with durable, corrosion resistant PVC

CAB’s PVC Plastisol coating virtually eliminates slippage and movement of Cable Rings after installation. This is due to the molding action of the PVC coating to the individual strands of the messenger wire within the attachment section of the Cable Ring. This improved gripping action assures uniform spacing of Rings which provides a safer cable support system.

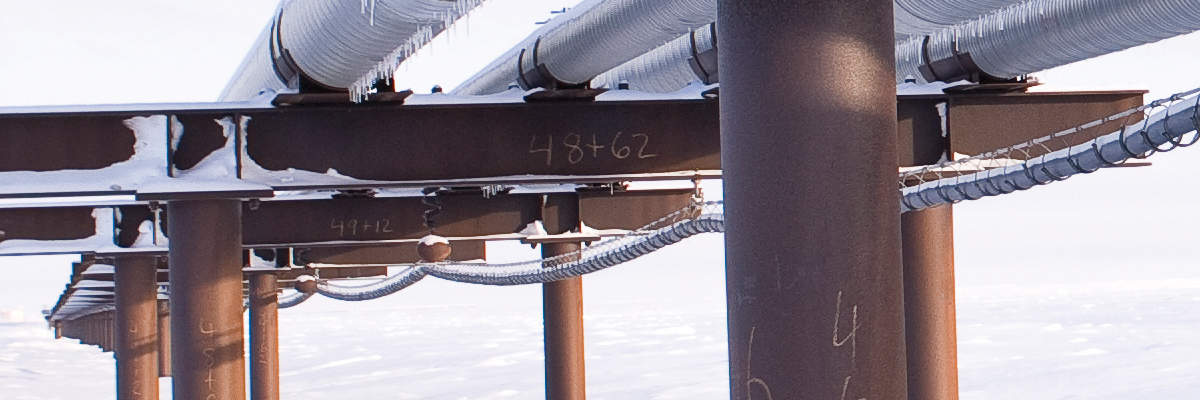

CAB Cable Rings and Saddles photographed under Oil Pipeline

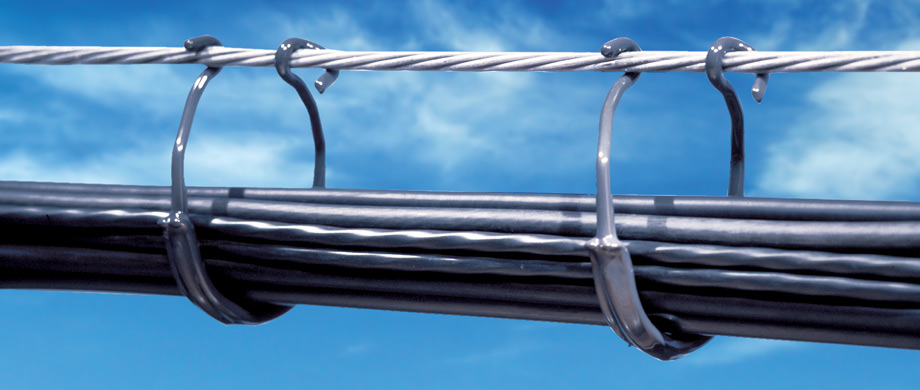

CAB Cable Rings and Saddles provide safe, strong, and cost effective support for all types of electrical and control cables in the most demanding environments. (Pictured CAB #8944 PVC coated Cable Rings and Saddles)



CAB Cable Rings are manufactured in standard, medium and long styles, and are designed to tightly fit on an exact messenger wire size to prevent slippage. Pictured here are CAB standard and long style galvanized Cable Rings and Saddles. Long Style Cable Rings have extra length under strand for running several cables or bundles of cables independently from the same messenger wire.

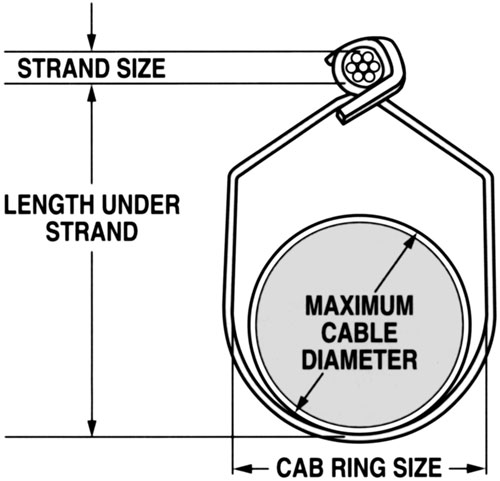

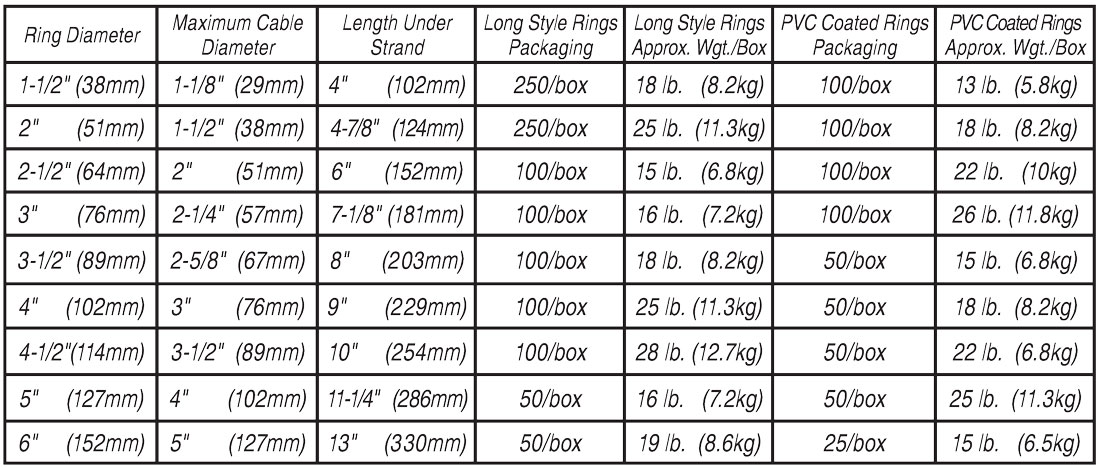

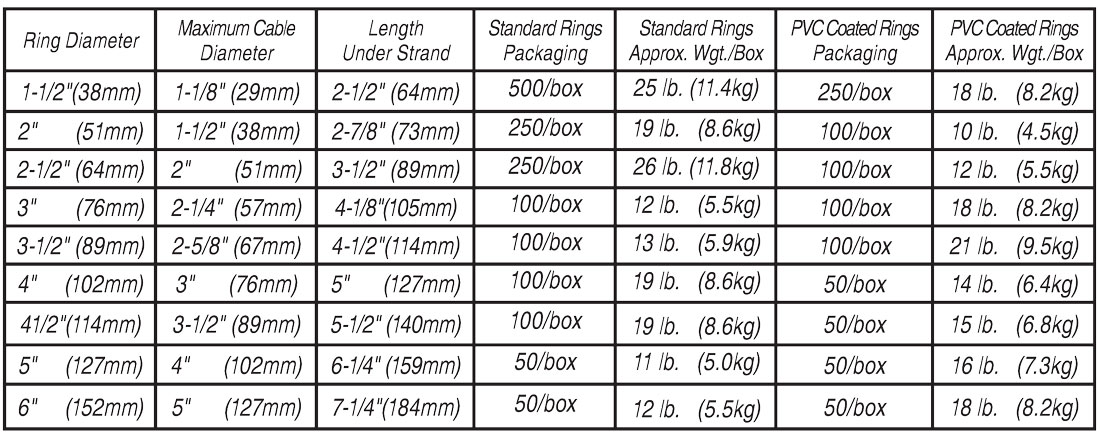

Diagram illustrating CAB Ring Sizing as per Diameter of Cable to be Supported

CAB Cable Ring and Saddle Assemblies offered in various lengths

Cables can be run separately by using CAB’s standard and long style rings.



CAB Spacing Guide:

Rings 1-1/2″ through 2-1/2″ (38mm – 64mm) space apart 15″ to 20″ (381mm – 508mm).

Rings 3″ through 6″ (76mm – 152mm) space apart 12″ to 15″ (305mm – 381mm).

Exact spacing depends on type of cable, nature of installation and loading requirements.

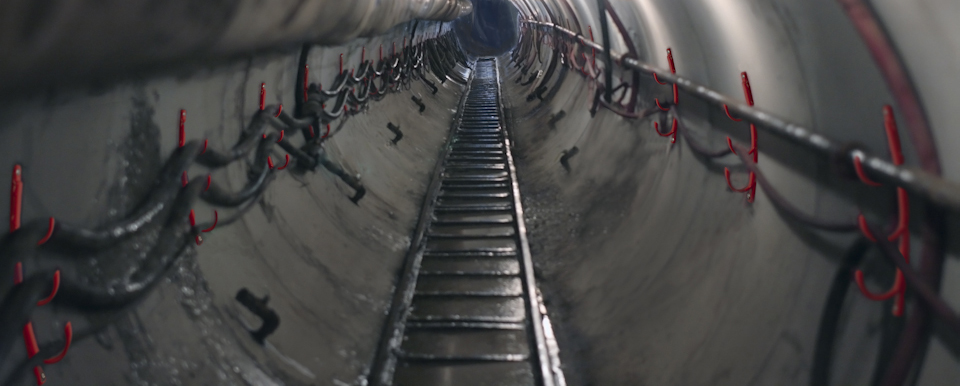

Side Mount Hanger Tunnel Application

CAB also manufacturers a wide variety of hangers useful for safely managing wires and cables in tunnels or confined spaces.

CAB Saddles for Standard and Long Style CAB Cable Rings

CAB Cable Saddle

  • CAB Saddles offer a 1-inch (25mm) wide load-bearing area for extra support and protection of cables. This is especially important when running heavy cables or multiple cables.

  • CAB Saddles install quickly and easily on any size Cable Ring. They are strong, lightweight and extremely durable.

  • CAB Saddles feature an integral locking system for secure attachment of the Saddle to the Cable Ring.

  • CAB Saddles are manufactured from aluminum, brass, or type 316 stainless steel for maximum corrosion resistance.

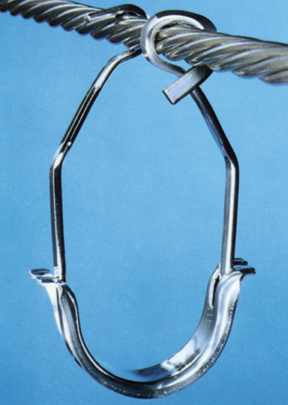

CAB Long  Style Cable Ring & Saddle

Order CAB Cable Rings and Saddles separately or as convenient combo units, already assembled for faster installation.

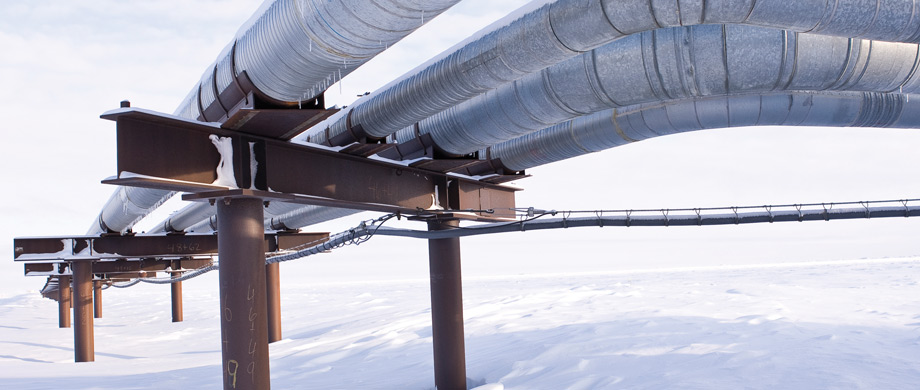

CAB Rings and Saddles used under Alaska Pipelineeline
Photo above shows CAB Cable Rings and Saddles used under pipeline structure along the North Slope of Alaska. Photo was contributed by engineering company who designed this project for a large U.S. oil company.
