CAB Brattice Hangers



CAB-Brattice-HangerBratticeHangerCabMan

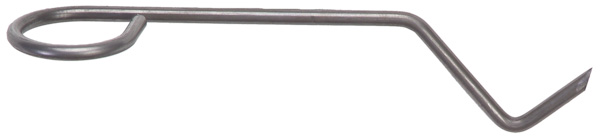

CAB Brattice Hangers are designed to quickly and easily suspend brattice cloth from the mine roof. Sharp offset tip keeps brattice tight to the roof. Made from .187 (4.7mm) wire, 7″ (178mm) long with 1-1/8″ (29mm) or 1-1/2″ (38mm) diameter hole.  For proper installation, hanger must be placed on end of roof bolt between the plate and the roof of the mine.

CAB 3703  1-1/8″ (29mm) dia. hole, 200/box, 17 lbs. (7.7kg)
CAB 7647  1-1/2″ (38mm) dia. hole, 200/box, 19 lbs. (8.6kg)



Click to request more information or free samples.

Click for safe working loads, spacing & other data.

CAB Brattice Hanger

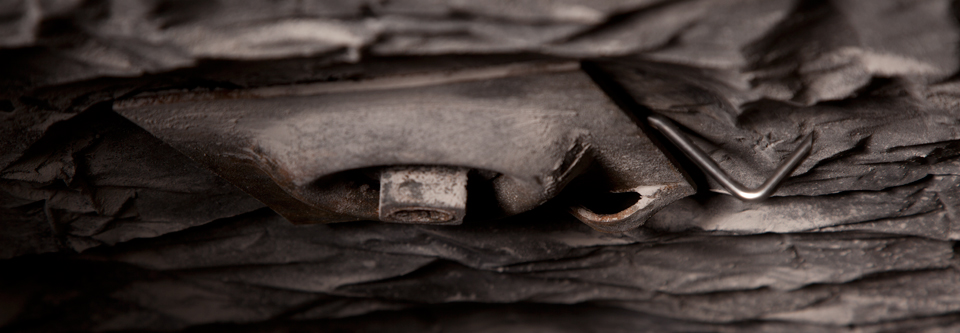

CAB Brattice Hangers speed installation time and reduce mine injuries.  (Pictured CAB #3703)
