CAB Latchback Hangers

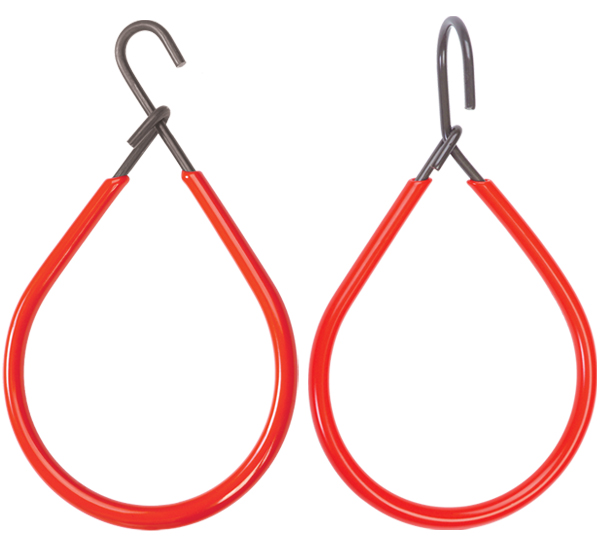

CAB Latchback Hooks standard and 90 degree offset

CAB Latchbacks are high quality hangers designed for supporting hose, pipe and cable from roof bolt plates, spads, wire mesh or structure. Manufactured from high tensile spring steel for maximum strength with a 5/8” (16mm) diameter top installation loop. CAB 321 same as 320, but top loop is offset 90º to carrier section.

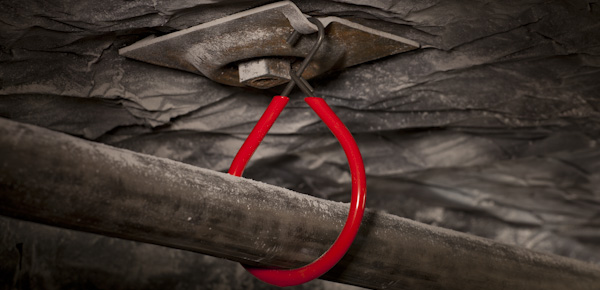

CAB 320 Latchback Hanger or Cable Clip used in coal mine

CAB Hangers are made from high tensile spring steel for added strength and safety. (Pictured CAB #320 Latchback)

CAB 320 3-5/8” (92mm) dia., .156 (4mm) wire, 7” (178mm) long, 100/box, 15 lbs (6.8kg)
CAB 321 3-5/8” (92mm) dia., .156 (4mm) wire, 7” (178mm) long, 90º offset loop, 50/box, 9 lbs (4.1kg)
CAB 308 4-1/2” (114mm) dia., .156 (4mm) wire, 8” (203mm) long, 50/box, 9 lbs (4.1kg)
CAB 306 4-1/2” (114mm) dia., .187 (4.7mm) wire, 8” (203mm) long, 50/box, 12 lbs (5.5kg)

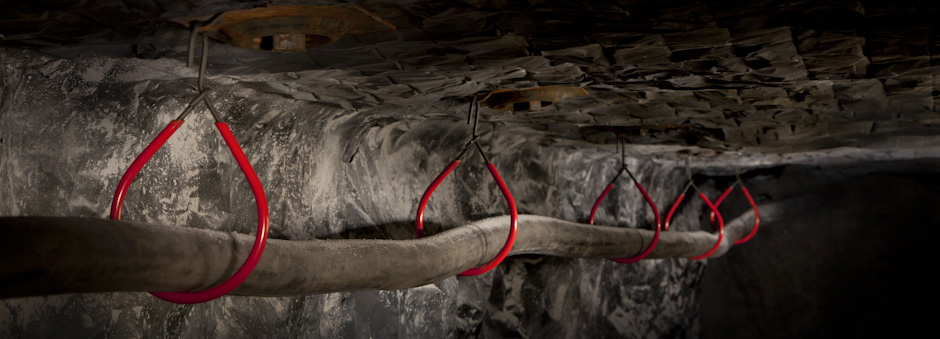

CAB Super Latchbacks are quick and easy to install and provide safe support for cables.  (Pictured CAB #3704 Super Latchback)

CAB Super Latchback Hanger

CAB Super Latchbacks are made from .187 (4.7mm) high tensile spring steel and feature a large capacity 4-1/2” (114mm) diameter carrier. For easier installation, hanger has extra large 1-3/8” (35mm) diameter 90º offset top installation loop.

CAB 3704 Latchback Hanger

CAB Heavy-Duty Latchback Hangers securely organize all types of cables, which helps to cut operating costs.  (Pictured CAB #3704 Super Latchback)
