CAB U-Hangers

CAB U-Hangers are one of our most popular and versatile hangers for underground cable support.

CAB U-Hangers with Standard Crossbars

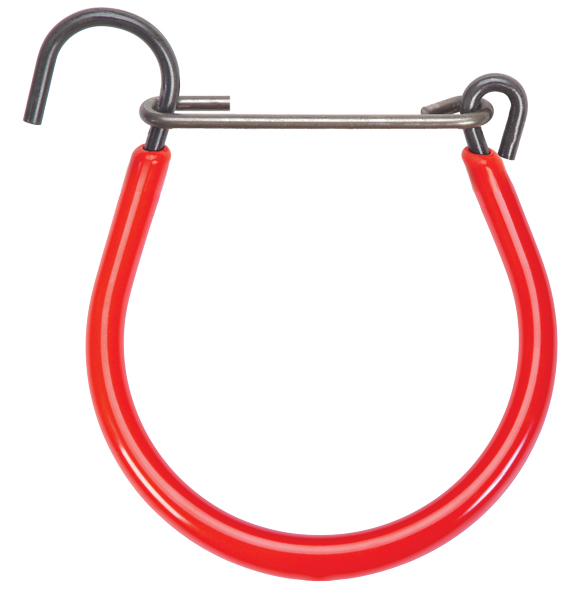

CAB U-Hanger with standard crossbar

CAB U-Hangers with Crossbars are made for supporting all types of cables, pipe and tubing from roof bolt plates, spads, or other structure. They feature a locking crossbar to retain cables in the hanger and a large 7/8″ (22mm) diameter top loop for easy installation. Carrying surfaces feature heavy coating of high dielectric grade plastisol for maximum insulation and abrasion resistance. Made from .187 (4.7mm) high carbon spring steel wire.

CAB 316   3” (76mm) dia., 4-1/2” (114mm) long, 100/box, 17 lbs. (7.7kg)
CAB 335  4” (102mm) dia., 6” (152mm) long, 50/box, 11 lbs. (5.0kg)
CAB 336  5” (127mm) dia., 7” (178mm) long, 50/box, 13 lbs. (5.9kg)

CAB U-Hangers with Safety-Tip Crossbars

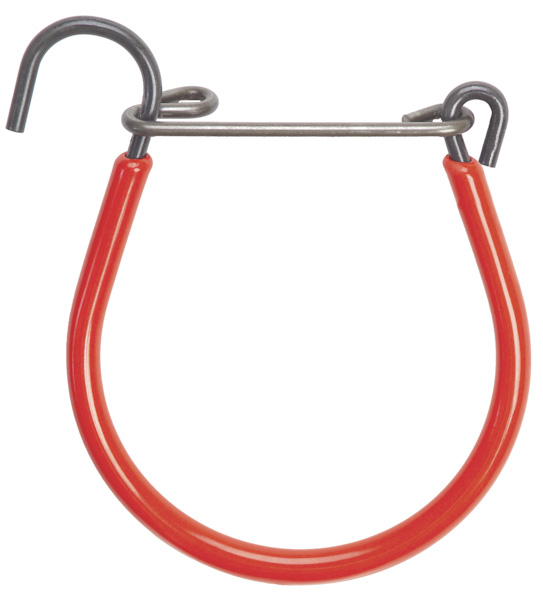

CAB U-Hanger with Safety-Tip Crossbars

CAB U-Hangers with Safety-Tip Crossbars feature a rounded safety tip on the end of the crossbar. The locking crossbar retains cables in the hanger, and the large 7/8″ (22mm) diameter top loop makes installation easy. This prevents snagging during installations, and also when crossbars are left unlatched.

CAB 221   3” (76mm) dia., 4-1/2” (114mm) long, 100/box, 17 lbs. (7.7kg)
CAB 344  4” (102mm) dia., 5-7/8” (149mm) long, 50/box, 12 lbs. (5.5kg)
CAB 222   5” (127mm) dia., 7-1/8” (181mm) long, 50/box, 14 lbs. (6.4kg)

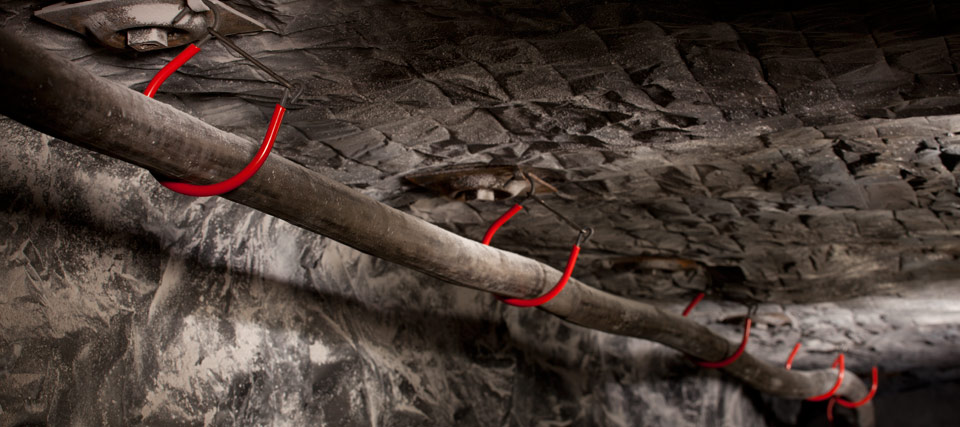

CAB U-Hanger shown in Crossbar Mining Application
All CAB Hangers receive a heavy coating of high dielectric grade Plastisol for added safety and protection of cables and hoses. (
Pictured CAB #344 U-Hanger with Safety-Tip Crossbar)

Click to request more information or free samples.

Click for safe working loads, spacing & other data.
