CAB Heavy Duty J-Hooks

This line of heavy duty hangers provides safe, strong support for electrical cables, hoses and pipes. CAB J-Hooks are made from .180” x 1” (4.6 x 25.4 mm) safety edge steel, with a heavy 80 mil (2mm) coat of Plastisol for added safety and protection. These hangers are ideal for in higher voltage and heavier load applications. Keyhole feature is useful for hanger adjustment or removal. Sizes up to 12″ (305mm) diameter.

CAB Standard J-Hooks

CAB Standard J-Hook

J-Hooks offer safe, strong support for sidewall applications. Keyhole has 1/2” (13mm) opening and 5/16” (8mm) slot. Made in wide variety of  sizes in both plain and hot dipped galvanized steel. Please call for information on sizes and varieties available.

CAB 343   1-1/2” (38mm) dia., 5-1/2” (140mm) long, 50/box, 24 lbs. (11kg)
CAB 347 3” (76mm) dia., 5-1/2” (140mm) long, 50/box, 29 lbs. (13.2kg)
CAB 349   4” (102mm) dia., 6-3/4” (171mm) long, 25/box, 18 lbs. (8.2kg)
CAB 350   5” (127mm) dia., 8” (203mm) long, 25/box, 23 lbs. (10.5kg)

CAB Loop Top J-Hooks

CAB Loop Top J-Hook

CAB Loop Top J-Hooks are designed with a 1-3/8” (35mm) diameter top loop for versatility in hanging from roof or other structure. Variety of other sizes and custom lengths available. Please call for more information.

CAB 928     3” (76mm) dia., 6-1/2” (165mm) long, 50/box, 32 lbs. (14.5kg)
CAB 4501   4” (102mm) dia., 8” (203mm) long, 25/box, 20 lbs. (9.1kg)

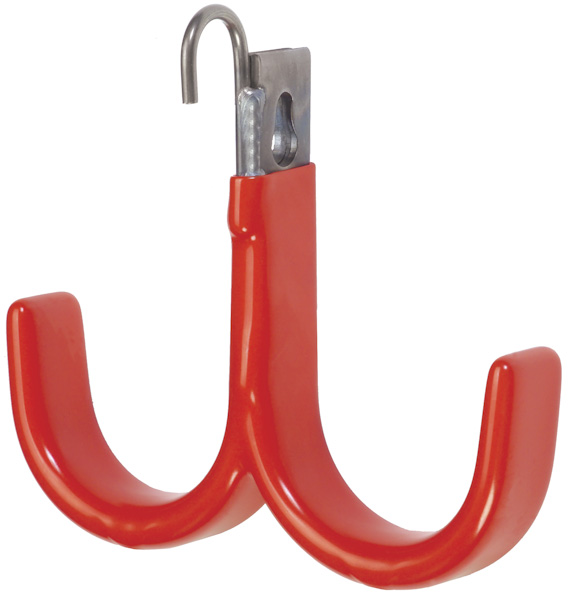

CAB Double J-Hooks

CAB Double J-Hook

CAB Double J-Hooks are a  favorite for hanging multiple cables from the mine roof. 3″ (76mm) diameter hooks with 5/8” (16mm) diameter top loop. CAB 213 and 155 top loop made from .187 (4.7mm) diameter wire; CAB 156 and CAB 4691 from .250″ (6.4mm) wire.

CAB 213    6” (152mm) long, 25/box, 31 lbs. (14.1kg)
CAB 155  12” (305mm) long, 25/box, 35 lbs. (15.9kg)
CAB 156    30” (762mm) long, 25/box, 41 lbs. (18.6kg)
CAB 4691   36” (914mm) long, 10/box, 40 lbs. (18.2kg)

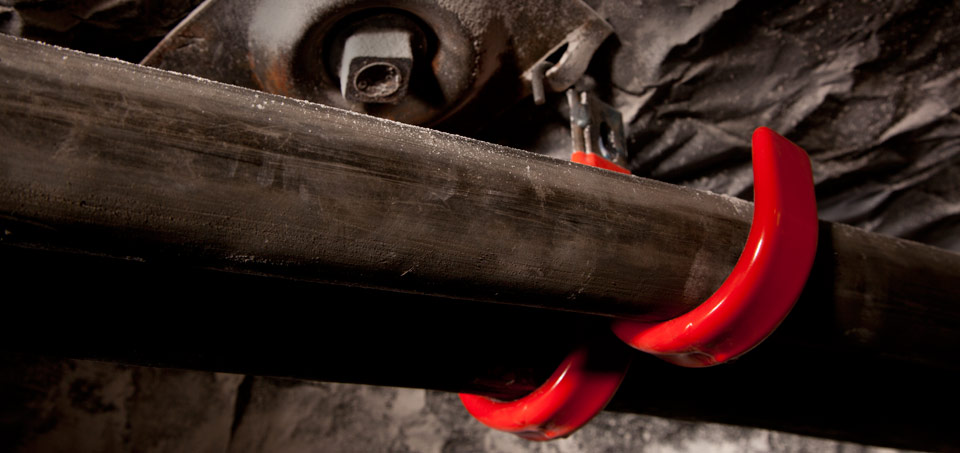

CAB Heavy Duty J Hook Coal Mine Application

All CAB Hangers have a tough, durable Plastisol coating in the carrier section to provide extra protection of cables.  (Pictured CAB #213 Double J-Hook)

CAB Side Mount J-Hooks

CAB Side Mount Hanger

CAB Side Mount J-Hooks are heavy duty supports designed to carry multiple cables. Especially effective in highly corrosive environments. Carriers are 3″ (76mm) diameter. Can be custom made with any number or size carriers required.

CAB 6958   1 carrier, 8” (203mm) long, 25/box, 28 lb. (12.7kg)
CAB 6959   2 carrier, 14-1/2″ (368mm) long, 10/box, 24 lb. (10.9 kg)
CAB 5133   3 carrier, 20” (508mm) long, 10/box, 32 lb. (14.5kg)
CAB 6681   4 carrier, 26” (660mm) long, 5/box, 22 lb. (10kg)
CAB 6704   4 carrier, 26” (660mm) long, custom heavy duty style

CAB Stacked J-Hooks

CAB Stacked J-Hook

Stacked J-Hooks are heavy duty 2-carrier hangers for supporting pipe and cables from roof, side or structure. Made from .180 x 1” (4.6 x 25.4mm) safety edge steel and .187 (4.7mm) high carbon wire. 1-3/8” (35mm) diameter top loop.

CAB 965    1-1/2” (38mm) dia., 9-1/2” (241mm) long, 25/box, 29 lbs. (12.3kg)
CAB 966    3” (76mm) dia., 13” (330mm) long, 10/box, 16 lbs. (7.3kg)
CAB 6188   3” (76mm) dia., 30” (762mm) long, 25/box, 44 lbs. (20.0kg)

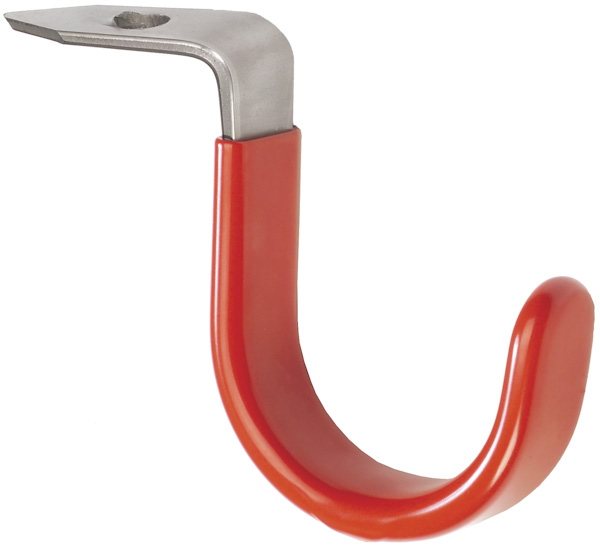

CAB Drive-In J-Hooks

CAB Drive-In J-Hook

Drive-in J-Hooks feature a sharp tip for driving, an installation hole in the drive-in shaft and a special detent to resist pullout. Packaged 25/box.

CAB 353   3” (76mm) dia., 5” (127mm) long, 17 lbs. (7.7kg)
CAB 462   4” (102mm) dia., 7” (178mm) long, 21 lbs. (9.5kg)
CAB 479   5” (127mm) dia., 8” (203mm) long, 30 lbs. (13.6 kg)

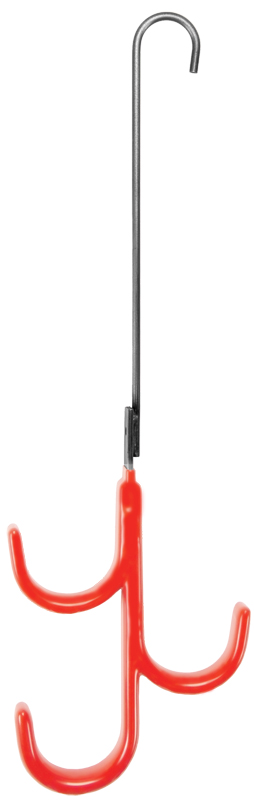

CAB J-Hooks with Extensions

CAB J-hooks with extensions





J-Hooks with extensions are made from .180”x1” (4.6 x 25.4mm) wide safety edge steel with 1/4″ (6.4mm) diameter round wire extension for easy installation. All carriers are 3” (76mm) diameter with heavy plastisol coating for protection of cables. Top loop is 1-1/2″ (38mm) diameter. Single, double, triple and other configurations available.

1-Carrier:
CAB 7379  18″ (457mm) long, 25/box, 22 lbs. (10kg)
CAB 183     36″ (914mm) long, 25/box, 28 lbs. (12.7kg)

2-Carrier:
CAB 7558   30″  (762mm) long, 25/box, 45 lbs. (20.5kg)

3-Carrier:
CAB 244   14″ (356mm) long, 10/box, 22 lbs. (10kg)
CAB 243   24″ (610mm) long, 10/box, 25 lbs. (11.4kg)
CAB 245   36″ (914mm) long, 10/box, 27 lbs. (12.3kg)
CAB 250   48″ (1.2m) long, 10/box, 30 lbs. (13.6kg)
CAB 189    72″ (1.8m) long, 10/box, 31 lbs. (14.1kg)

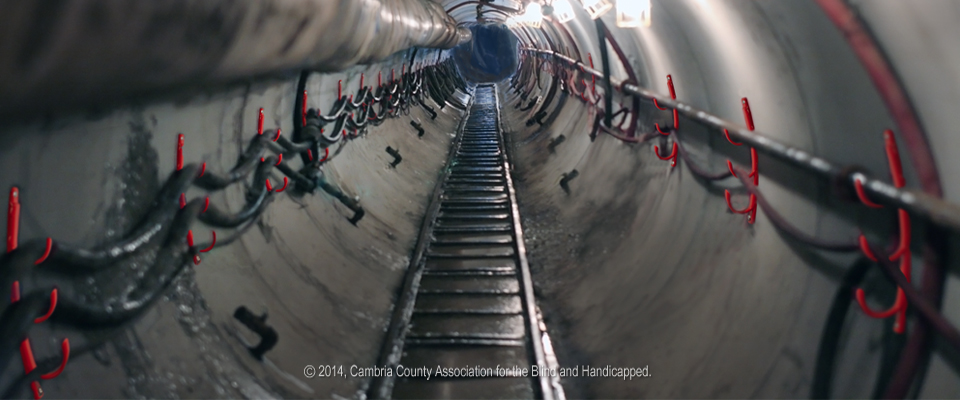

CAB J-Hooks used to support cables, hoses and pipe in tunnel

CAB Hangers provide heavy-duty support for hose, pipe and cable in tunnel applications.  (Pictured CAB #5133 Side Mount Hanger)

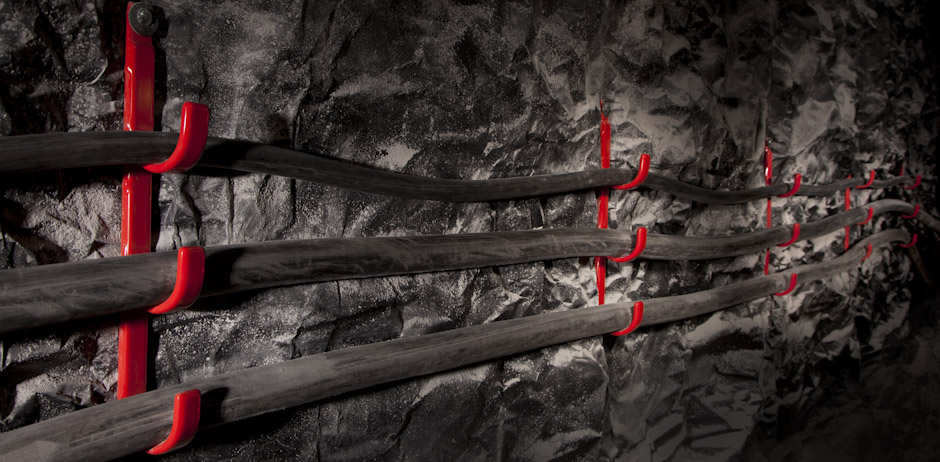

Side Mount Hanger Application

CAB’s tough industrial grade hangers are insulated with a flame retardant, high-dielectric grade Plastisol coating.  (Pictured CAB #5133 Side Mount Hanger)
