CAB® Longwall Hangers

CAB Longwall Hangers are designed to improve safety by organizing all types of cables and hoses used in longwall operations. Heavy duty 8-carrier hanger designed to improve safety by organizing all types of cables and hoses used in longwall operations.

Longwall Hanger saves time and money because it is quick and easy to install and load with cables. CAB’s heavy plastic coating makes this hanger much safer to use than other types of fabricated bare metal hangers.

Made from sturdy .180″ x 1″ (4.6 x 25.4mm) safety edge steel with a strong 1/4” (6.4mm) diameter swivel hook at the top. Also available with 12” (305mm) long extension hook at top for reduced lifting in higher roof areas. All carriers are 3″ (76mm) diameter and coated high dielectric grade plastisol. Coating is also very abrasion resistant and flame retardant.

CAB Longwall Hanger

CAB 154 24” (610mm) long, 10/box, 60 lbs. (27.3kg)
CAB 7406 34” (864mm) long, 10/box, 64 lbs. (29.1kg)

Also available in 4 and 6-Carrier styles and with extensions for high roof areas.

Click to request more information or free samples.

Click for safe working loads, spacing & other data.

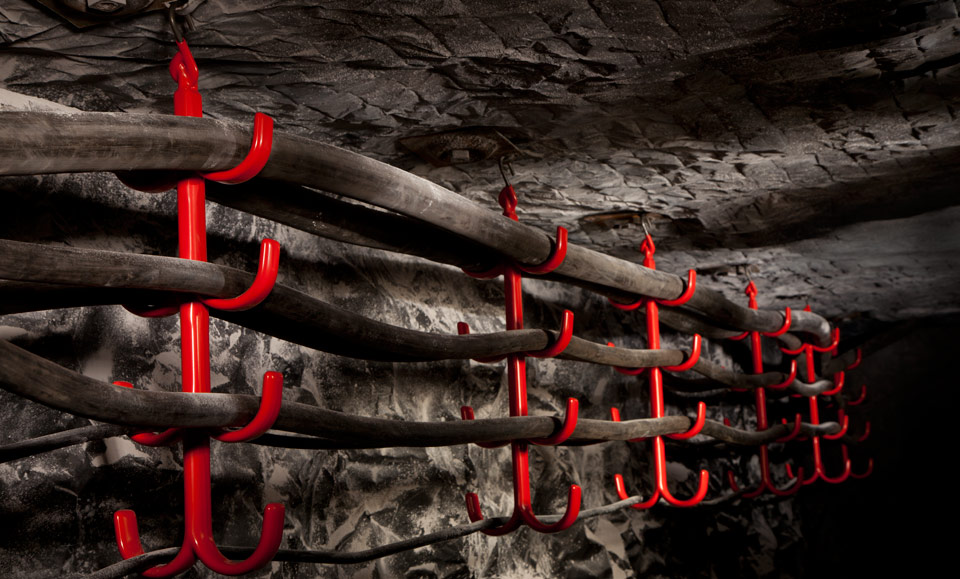

CAB Longwall Hangers shown in mine

CAB Heavy Duty Longwall Hangers organize all types of hose and cable for improved efficiency and safety. (Pictured CAB #154 Longwall Hangers)
