CAB Vent Tube Hangers

CAB Vent Tube Hangers are safer, easier to install and more cost effective than chain or tie wire. CAB offers three styles of high quality hangers designed to safely suspend vent tubing. All are easier to use, more cost effective and safer than chain or tie wire.

Webbing styles are made from 1-1/2″ (38mm) wide polypropylene webbing with two heavy duty 1/4″ (6.4mm) S-hooks and quick release buckle for easy adjustment. Longer styles available with wire inserts sewn in the webbing for easy hook up in high roof areas. Rope style has spliced S-hook on one end and floating hook with line tightener on other end. After installation of hooks, tightener is easily adjusted on rope for proper positioning of vent tubing. Available in 1/4″ (6.4mm) and 5/16″ (8mm) diameter rope styles. Sizes measured by overall length fully extended. Custom sizes available.

Click to request more information or free samples.

Click for safe working loads, spacing & other data.

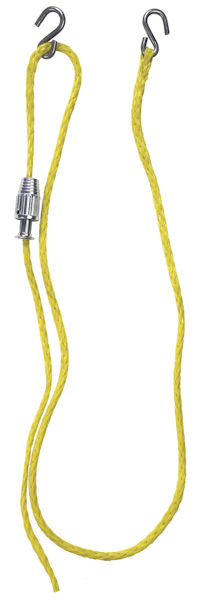

Rope Vent Tube Hangers

CAB-Rope-Vent-Tube-Hanger

CAB 6469 1/4″ (6.4mm) rope, 10 ft. (3m) long, 25/box, 7 lbs. (3.2kg)
CAB 6686 5/16″ (8mm) rope, 10 ft. (3m) long, 25/box, 12 lbs. (5.5kg)

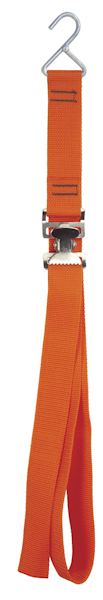

Webbing Vent Tube Hangers

CAB Webbing Vent Tube Hanger

CAB 7890   6 ft. (1.8m) long, 50/box, 16 lbs. (7.3kg)

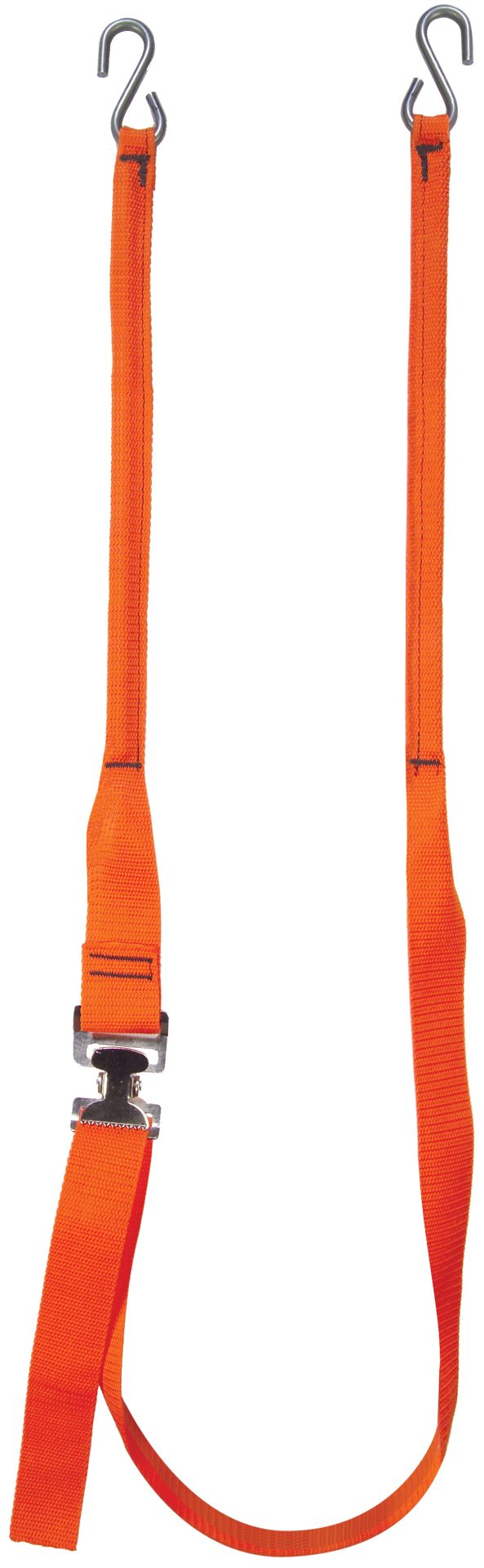

Wire Reinforced Webbing Vent Tube Hangers

Photo of CAB Wire Reinforced Webbing Vent Tube Hanger

CAB 7286 8 ft. (2.4m) long, 15″ (381mm) wire insert, 25/box, 19 lbs. (8.6kg)
CAB 6570 8 ft. (2.4m) long, 21″ (533mm) wire insert, 25/box, 19 lbs. (8.6kg)
CAB 7866     6 ft. (1.8m) long, no wire insert, 25/box, 15 lbs. (6.8kg)
